BXPKX500-III

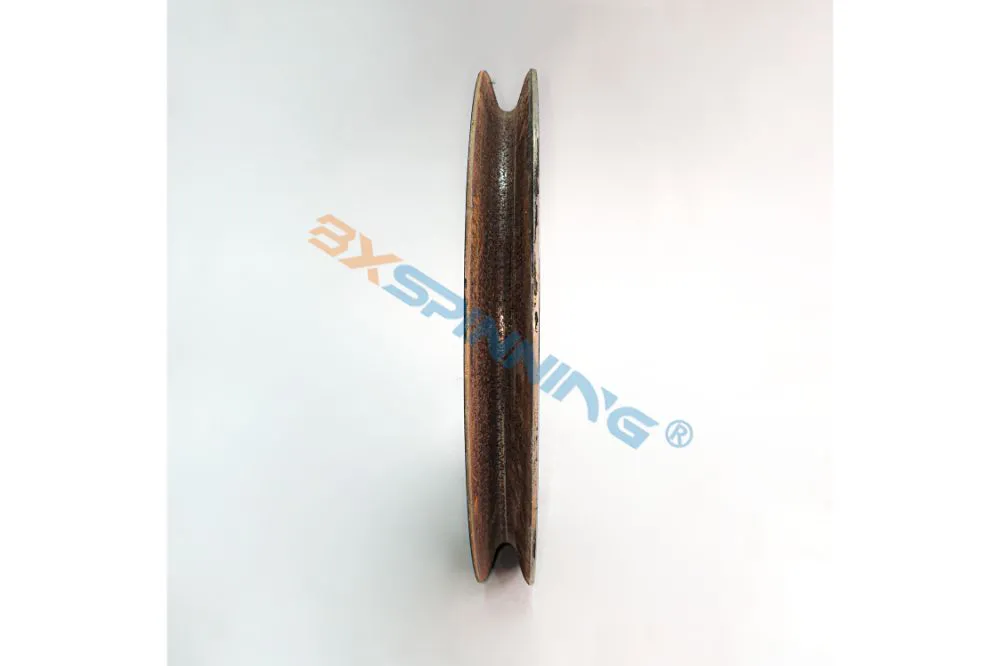

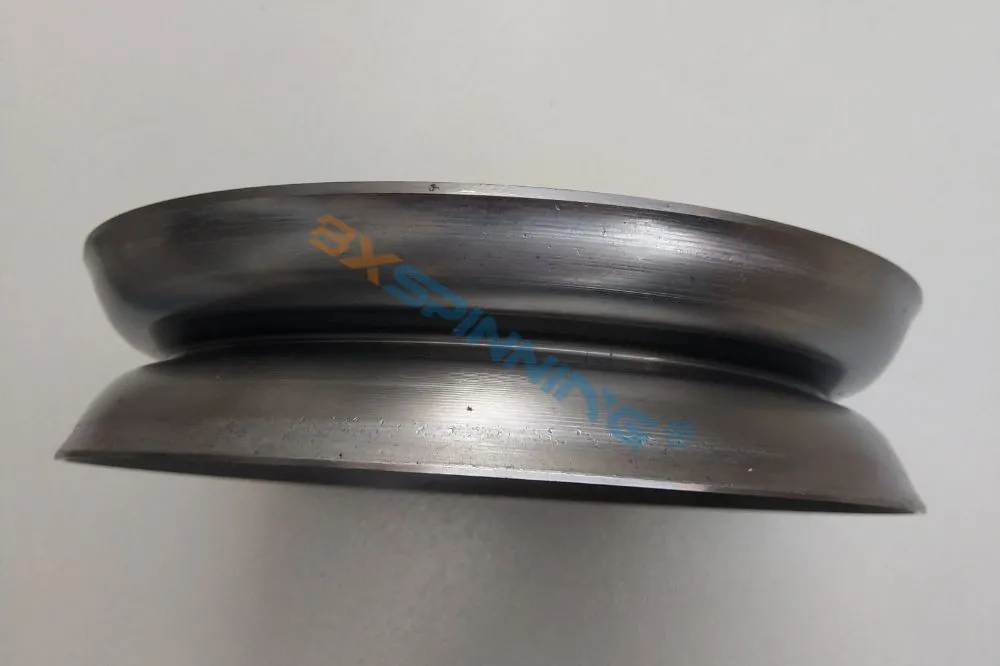

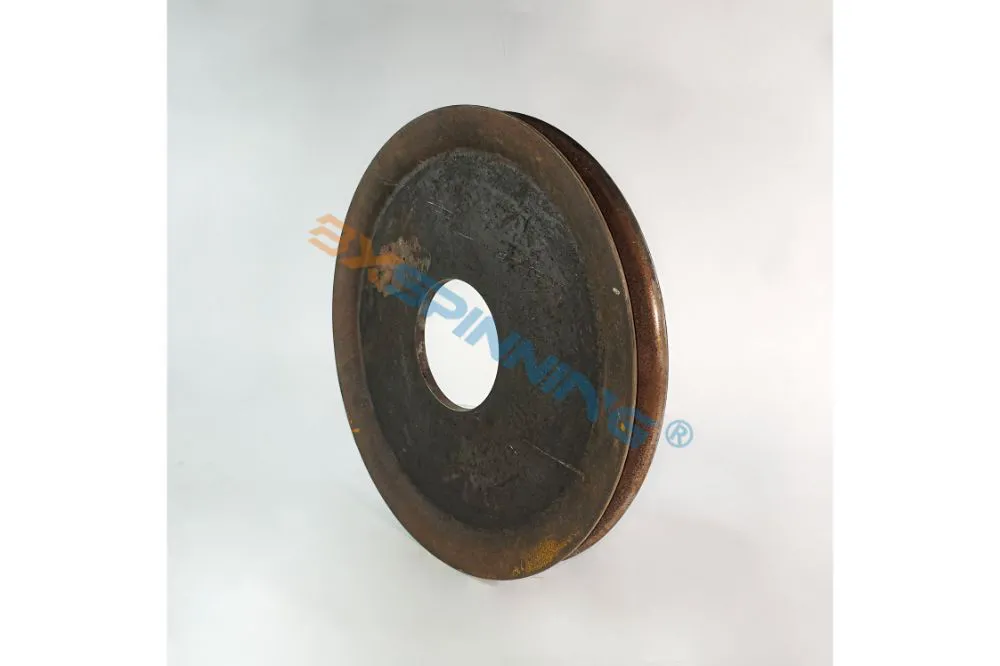

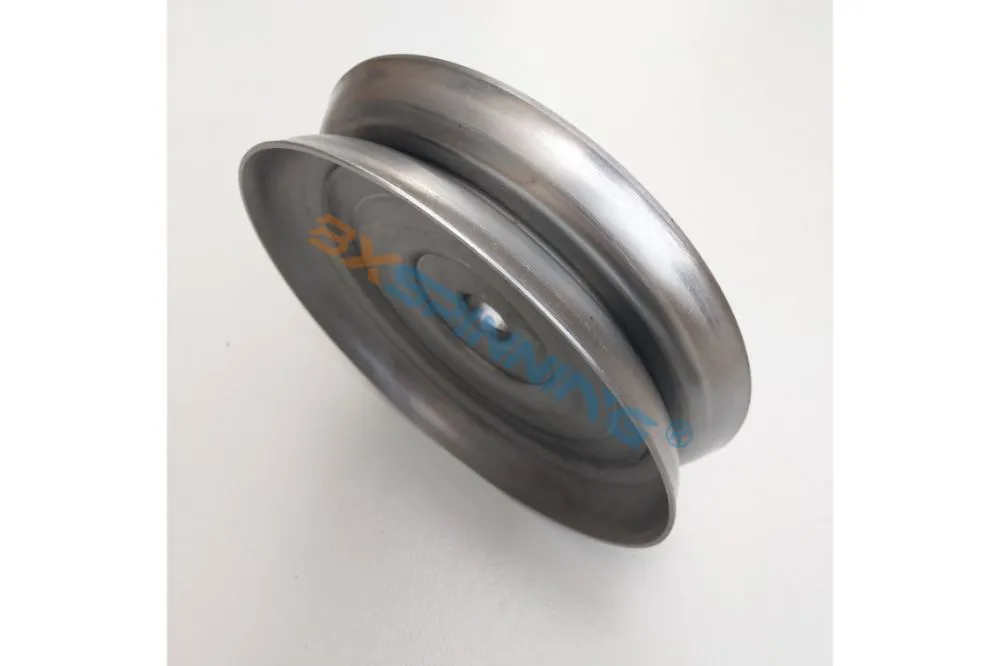

Integrated and modular design ensures excellent operational stability and reliability. Equipped with hard-alloy pointed roller for pre-splitting followed by spinning. Single-clamping forming process delivers high machining accuracy of workpieces and superior dimensional interchangeability. Widely applied in integral forming of aluminum alloy and mild steel "V"-grooved pulleys and various lightweight wheels, extensively used in automotive, tractor, washing machine industries.
Share
Product Detail

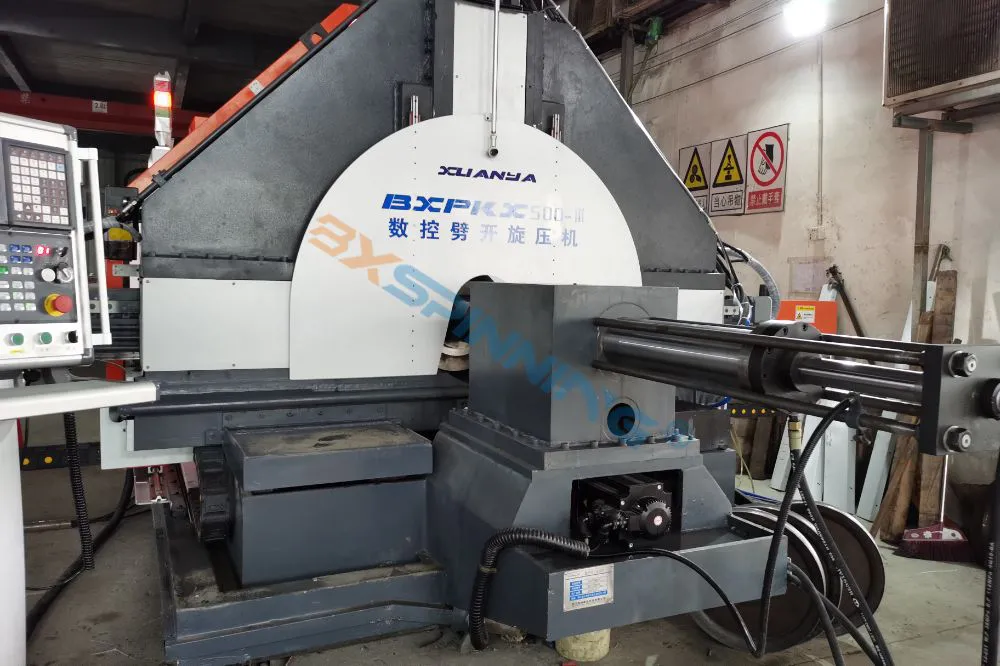

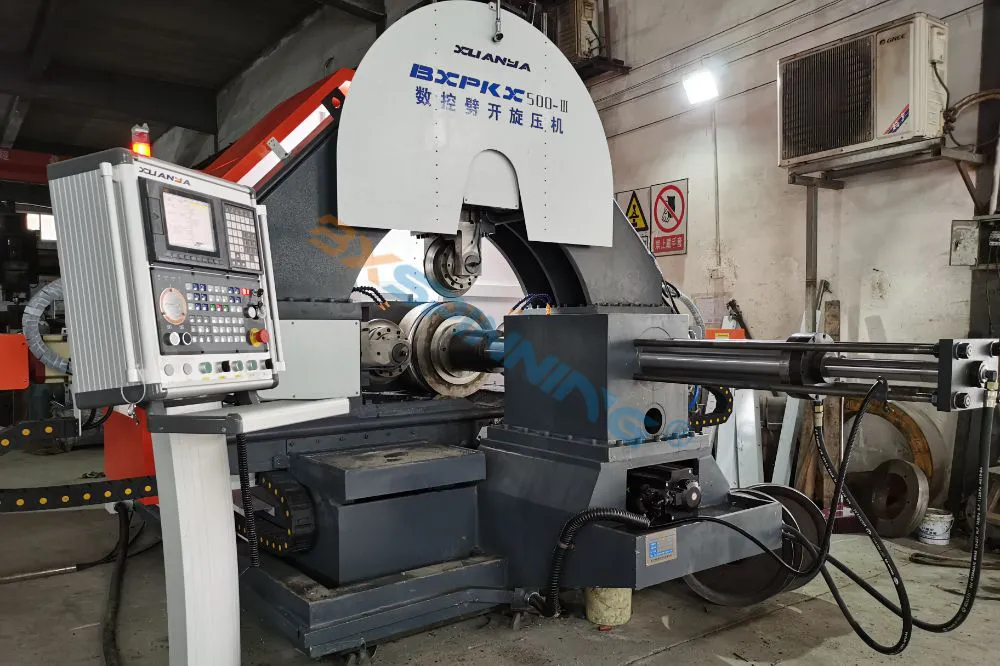

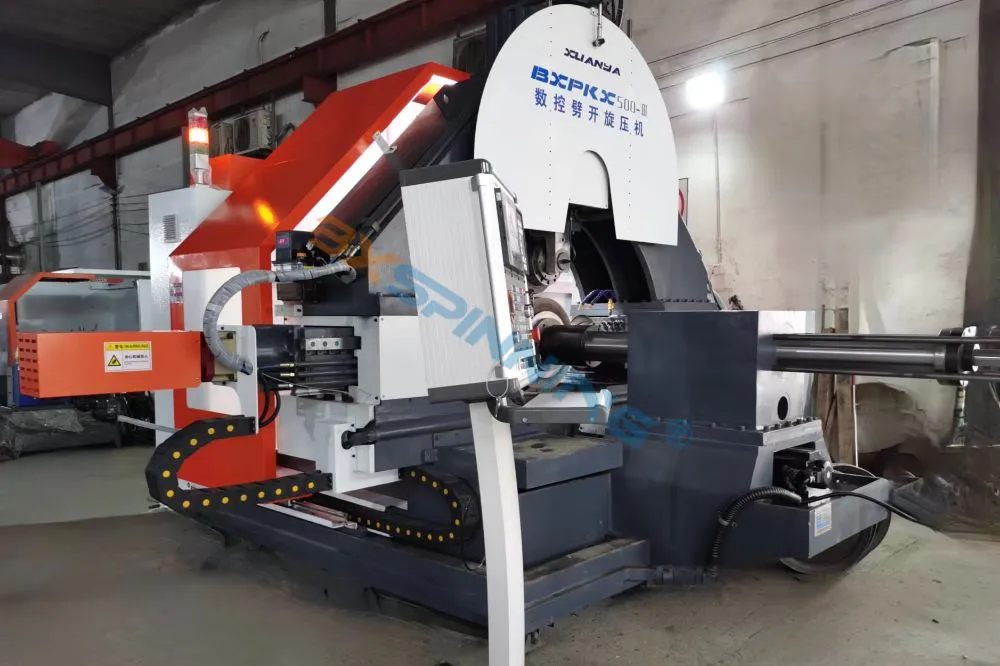

The BXPKX500-III CNC Splitting Spinning Machine is a high-performance metal forming machine designed for precision splitting spinning processes. By combining CNC control technology with advanced metal spinning techniques, this machine enables efficient forming of cylindrical and rotational metal components with high accuracy and consistent quality.
Developed for manufacturers requiring flexible and reliable metal forming solutions, the BXPKX500-III is suitable for processing aluminum, stainless steel, copper and other ductile metals used in industrial applications.
| Technical Parameters | |
| Machine Specification | BXPKX500-III |
| Max. Blank Diameter | 500mm |
| Spindle Speed | 0-300Rpm |
| Spinning Lubrication | High-Pressure Water Cooling |
| Machine Weight | 12T |
| Max. Blank Thickness | 2.0-16.0mm |
| Spinning Wheel Stations | 3-Station Tooling |
| Loading/Unloading Method | Automatic Loading/Unloading |
| Spinning Lubrication | 4-Position Servo-Hydraulic Turret |
The CNC splitting spinning process uses controlled rotary forming to gradually shape metal materials while achieving precise dimensional accuracy and excellent surface quality.
Compared with traditional forming methods, CNC splitting spinning provides:
Higher forming flexibility
Improved material utilization
Reduced production waste
Better surface finish
Stable repeatability for mass production
The BXPKX500-III provides an efficient solution for manufacturers producing complex rotational metal components.
The BXPKX500-III is widely used for manufacturing rotational metal components in various industries.
Applications:
Reflectors
Lamp housings
Lighting covers
Applications:
Automotive metal shells
Exhaust components
Custom formed parts
Applications:
Lightweight metal parts
Precision cylindrical components
Customized metal structures
Applications:
Stainless steel containers
Metal bowls
Cylindrical products
Looking for a reliable CNC Splitting Spinning Machine Manufacturer?
BOXIANG provides customized metal spinning equipment with professional engineering support for global manufacturers.
Contact us today for machine solutions and technical consultation.
