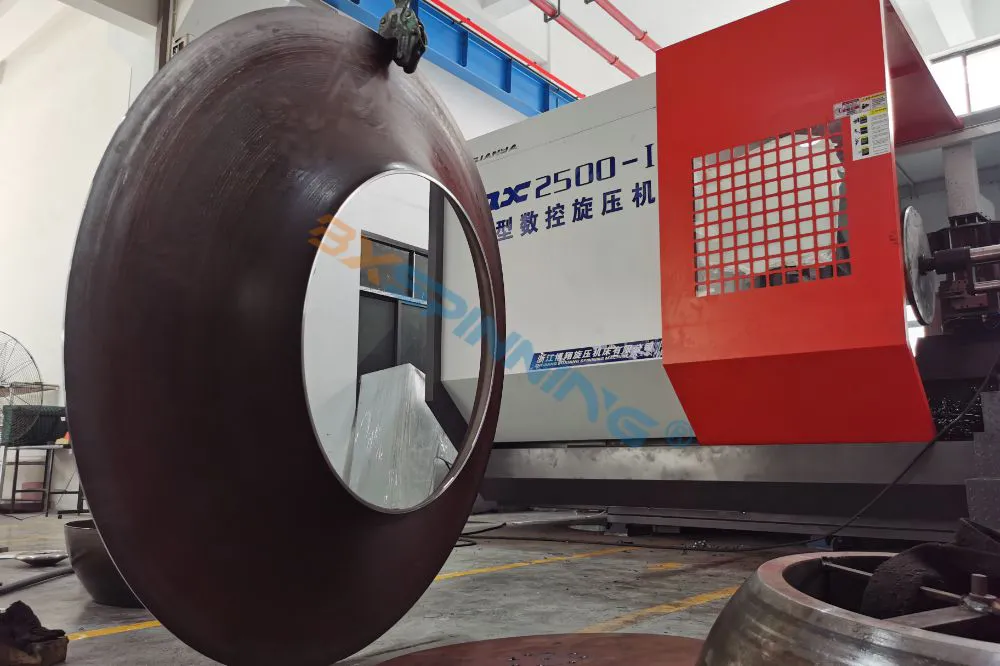

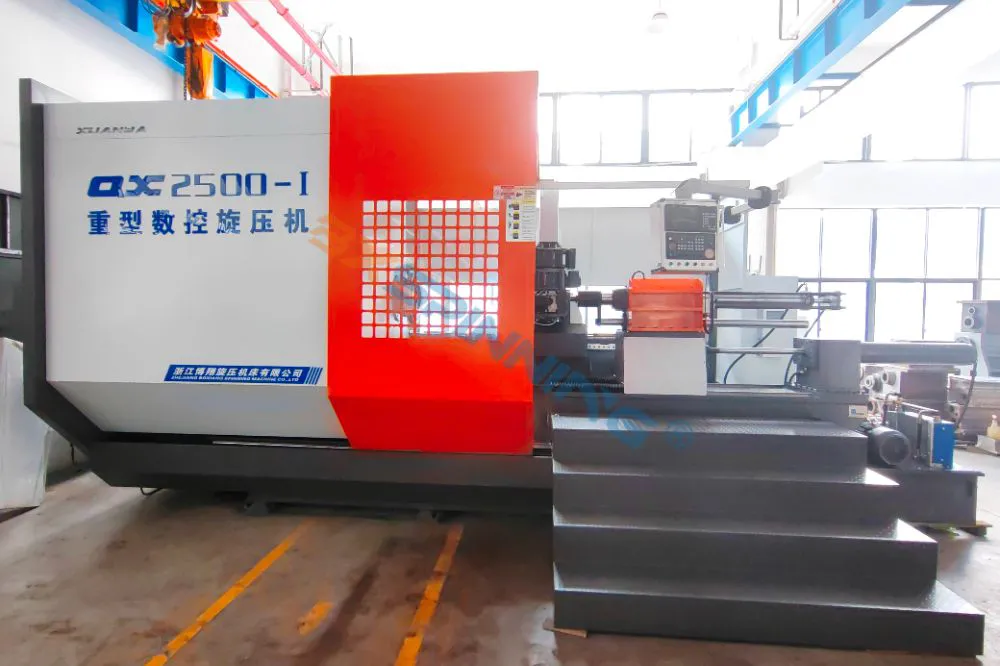

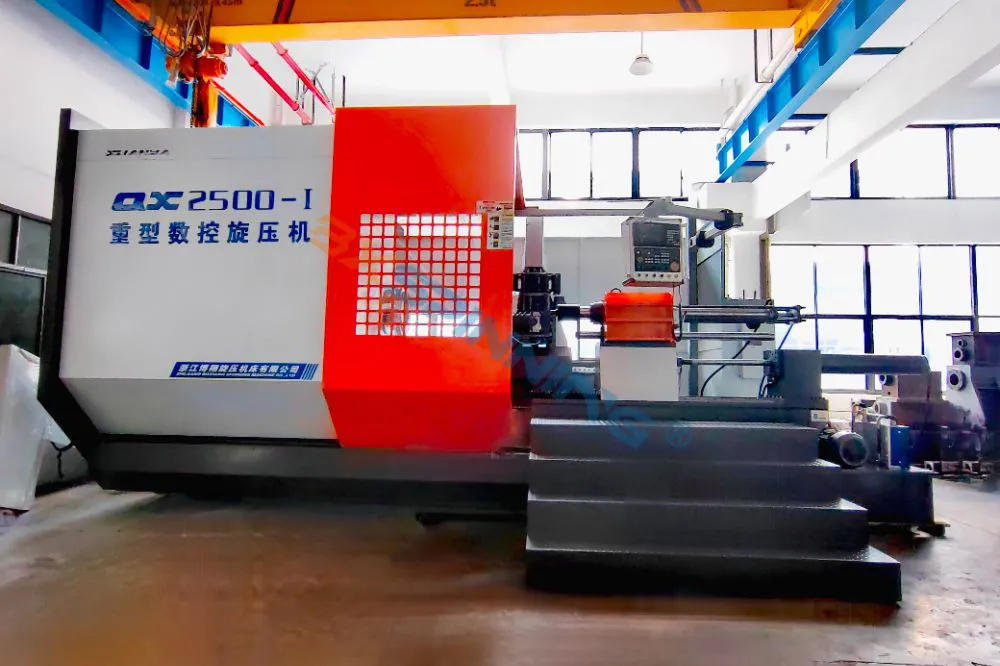

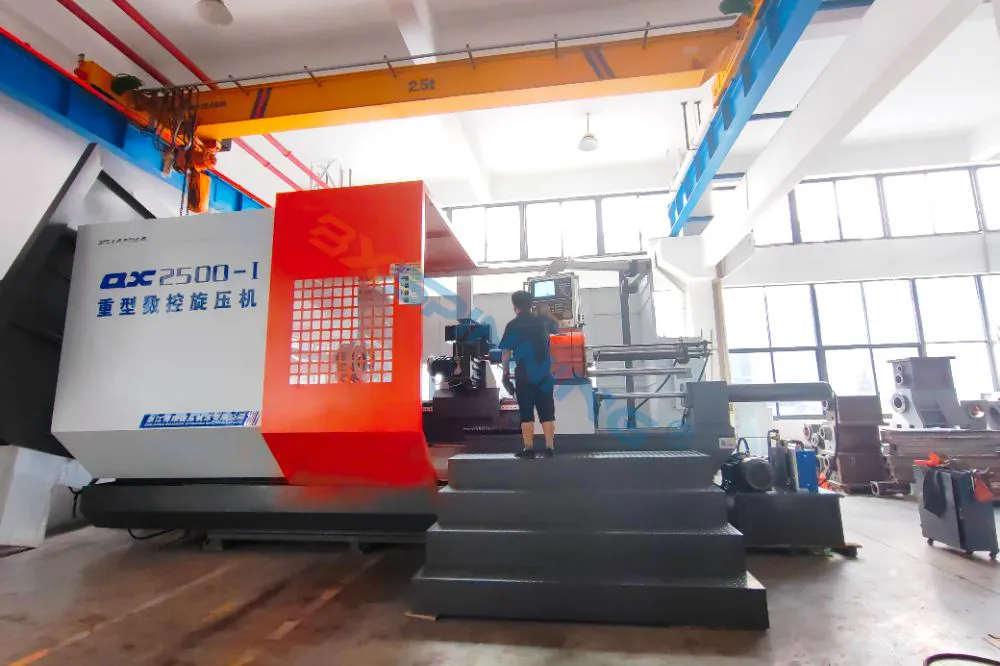

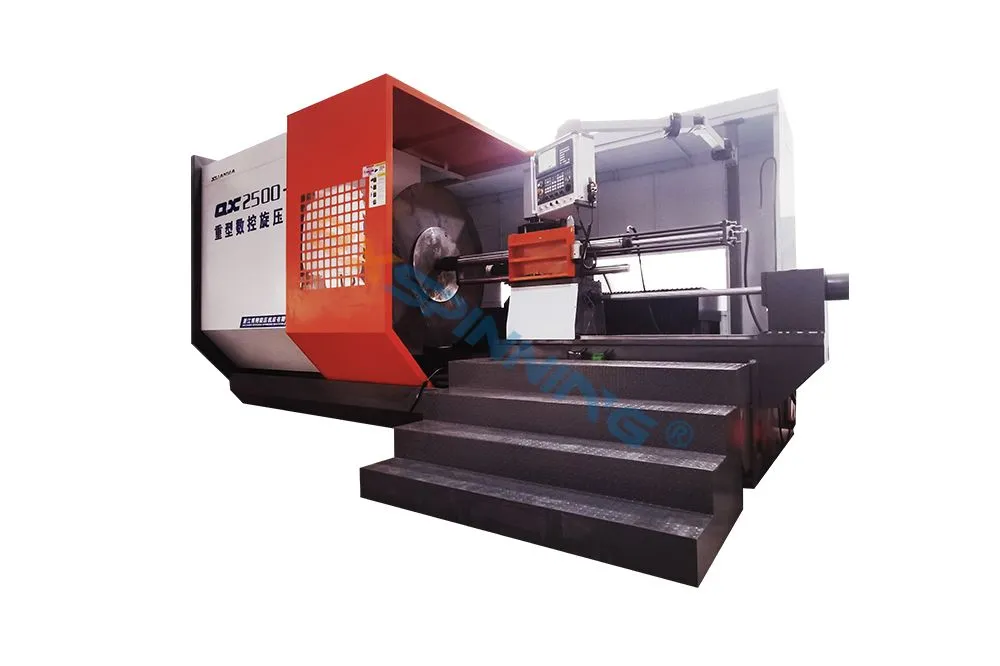

QX2500-I
QX2500 HEAVY-SPIN SERIES: ADVANCED CNC SPINNING SOLUTIONS
Engineered to redefine industrial-grade metal forming, the QX Heavy-Spin series integrates a stepless speed-regulated spindle drive, patented heavy-duty hydraulic tool systems, and a dual-cylinder tailstock structure, delivering exceptional rigidity and reliability. Through rigorous simulation and precision dynamic balancing calibration of critical components, the machine achieves near-zero vibration operation even under extreme high-load conditions. It is globally recognized as the preferred solution for forming ultra-thick materials (including steel up to 30mm), setting worldwide standards for machining accuracy retention, equipment durability, and superior workpiece surface quality.
Share
Product Detail
The Large Sheet Spinning Machine is a heavy-duty metal forming equipment specifically designed for processing large-diameter metal sheets and oversized blanks. It is widely used for manufacturing large circular, conical, dome-shaped, and cylindrical components with high precision and excellent structural strength.
This machine is ideal for industries requiring large-format metal forming, high stability, and efficient material utilization, such as aerospace, pressure vessels, lighting, HVAC, and industrial fabrication.
A Large Sheet Spinning Machine is a specialized spinning lathe that forms large metal sheets by rotating the blank at controlled speed while applying pressure through forming rollers.
The machine is designed to process:
Large circular sheets
Wide metal discs
Thick aluminum sheets
Stainless steel plates
Copper and alloy sheets

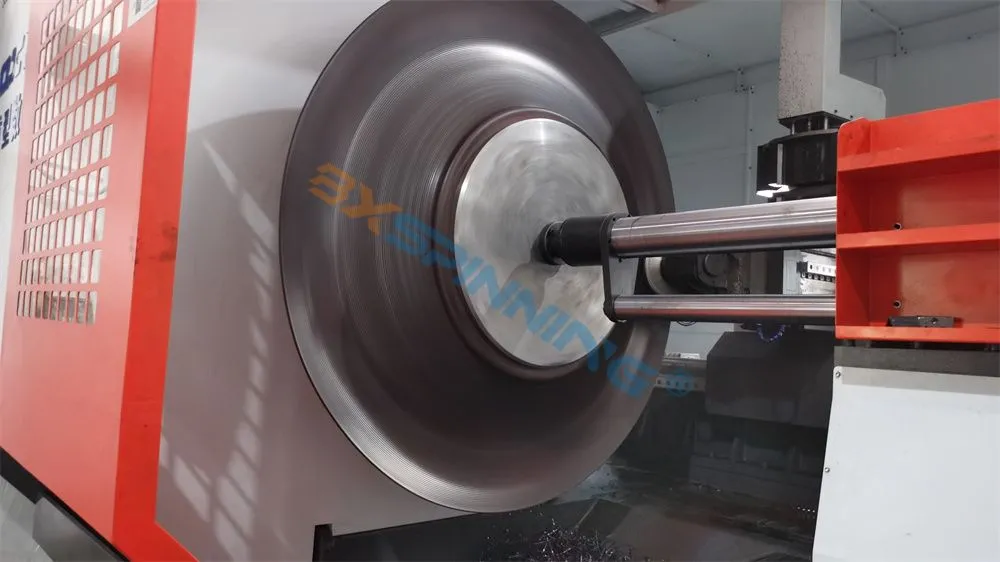

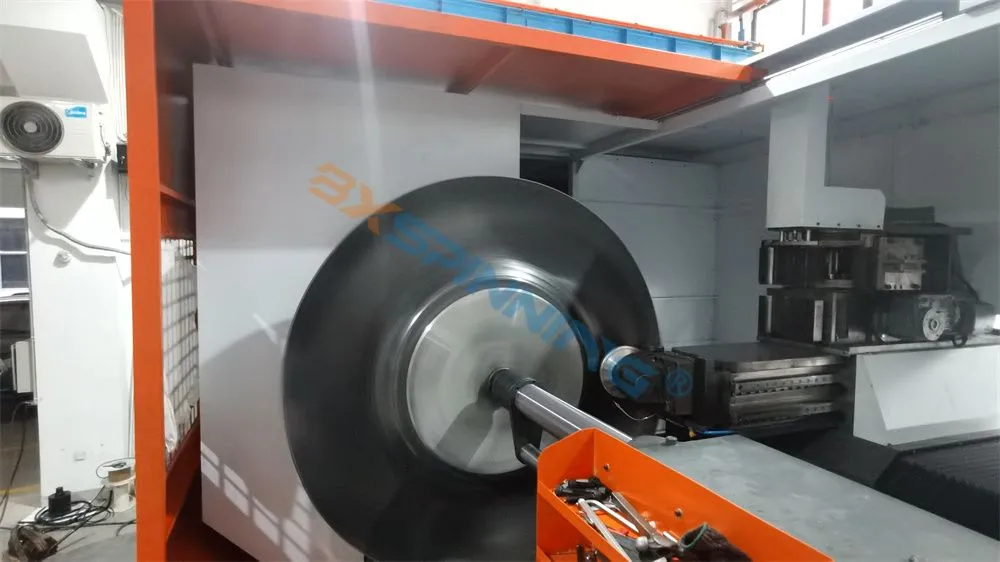

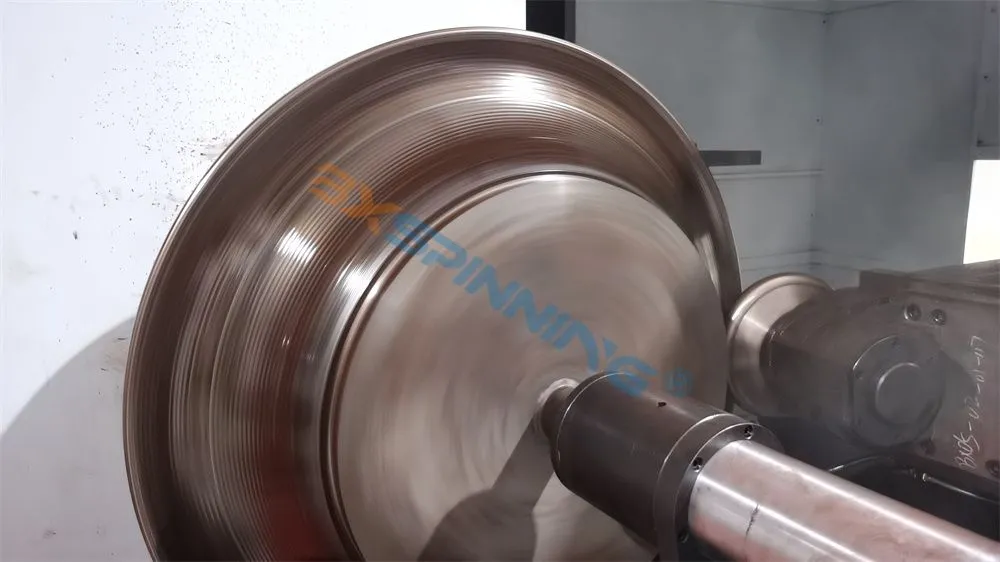

It gradually transforms flat sheet metal into symmetrical hollow products with smooth surfaces and seamless structure.
| Technical Parameters | |
| Machine Specification | QX2500-I |
| Maximum Blank Diameter | 2500mm |
| Spindle Speed | 0-500Rpm |
| Overall Dimensions (L×W×H) | 7.9*6.8*3.5m |
| Machine Weight | 40T |
| Aluminum Alloy | 0.5-12.0mm |
| Spinning Thickness for Carbon Steel | 0.5-12.0mm |
| Spinning Thickness for Stainless Steel | 0.5-8.0mm |
| Number of Tool Turret Stations | 4-Position Servo-Hydraulic Turret |
Maximum sheet diameter: customizable large format
Material thickness: thin to thick metal sheets
Drive system: servo / hydraulic / electric optional
Control system: manual / semi-automatic / CNC
Machine frame: reinforced heavy-duty steel structure
Tooling system: precision forming rollers
Operation mode: batch or continuous production
This machine is ideal for manufacturers who need:
Large-format metal sheet forming
Seamless industrial component production
High precision for oversized workpieces
Lower material waste
Stable heavy-duty performance
It is especially suitable for industrial metal fabrication and heavy component manufacturing. Contact us!
This equipment is widely used in:
Large lampshades and reflectors

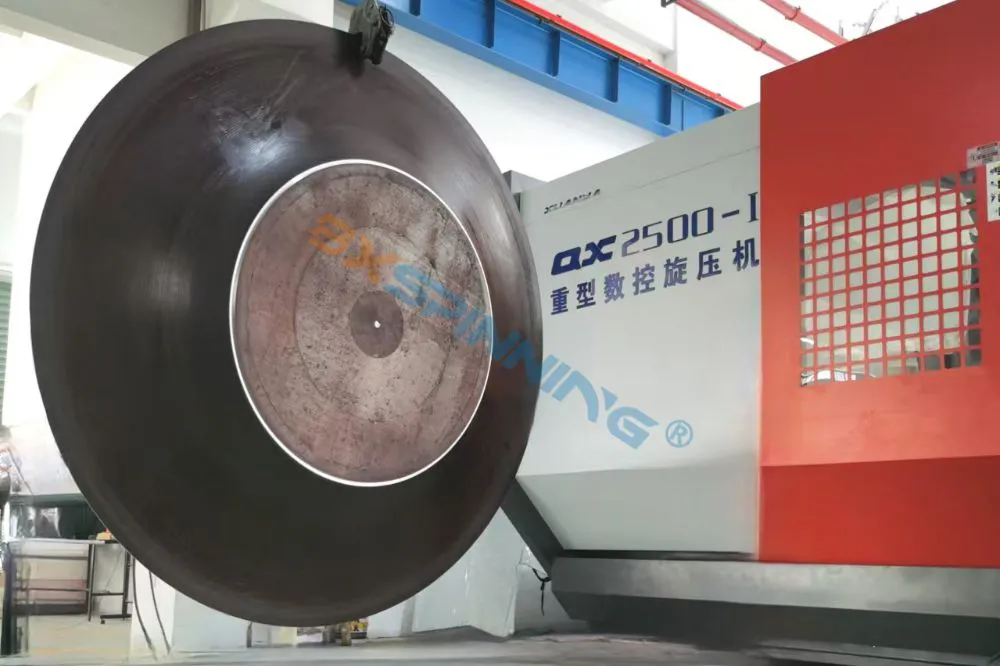

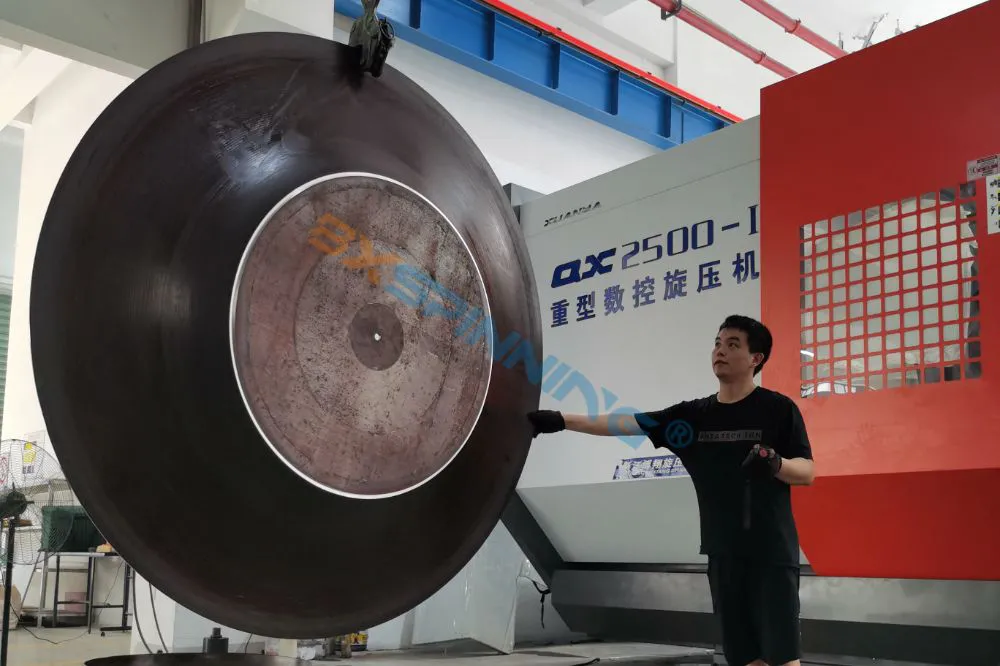

Pressure vessel heads
Industrial tanks and covers
HVAC air duct components
Aerospace domes and shells
Decorative architectural metal panels
Wind energy components
Industrial cone and cylinder fabrication
Designed specifically for large-diameter workpieces.
Produces seamless and durable components.
Smooth forming process reduces post-processing.
Lower tooling cost compared with stamping or casting.
Processes stainless steel, aluminum, copper, and alloys.
